Bake from Nuke to UVs / by Xuan Prada

  • Export your scene from Maya with the geometry and camera animation.
  • Import the geometry and camera in Nuke.
  • Import the footage that you want to project and connect it to a Project 3D node.



  • Connect the cam input of the Project 3D node to the previously imported camera.
  • Connect the img input of the ReadGeo node to the Project 3D node.

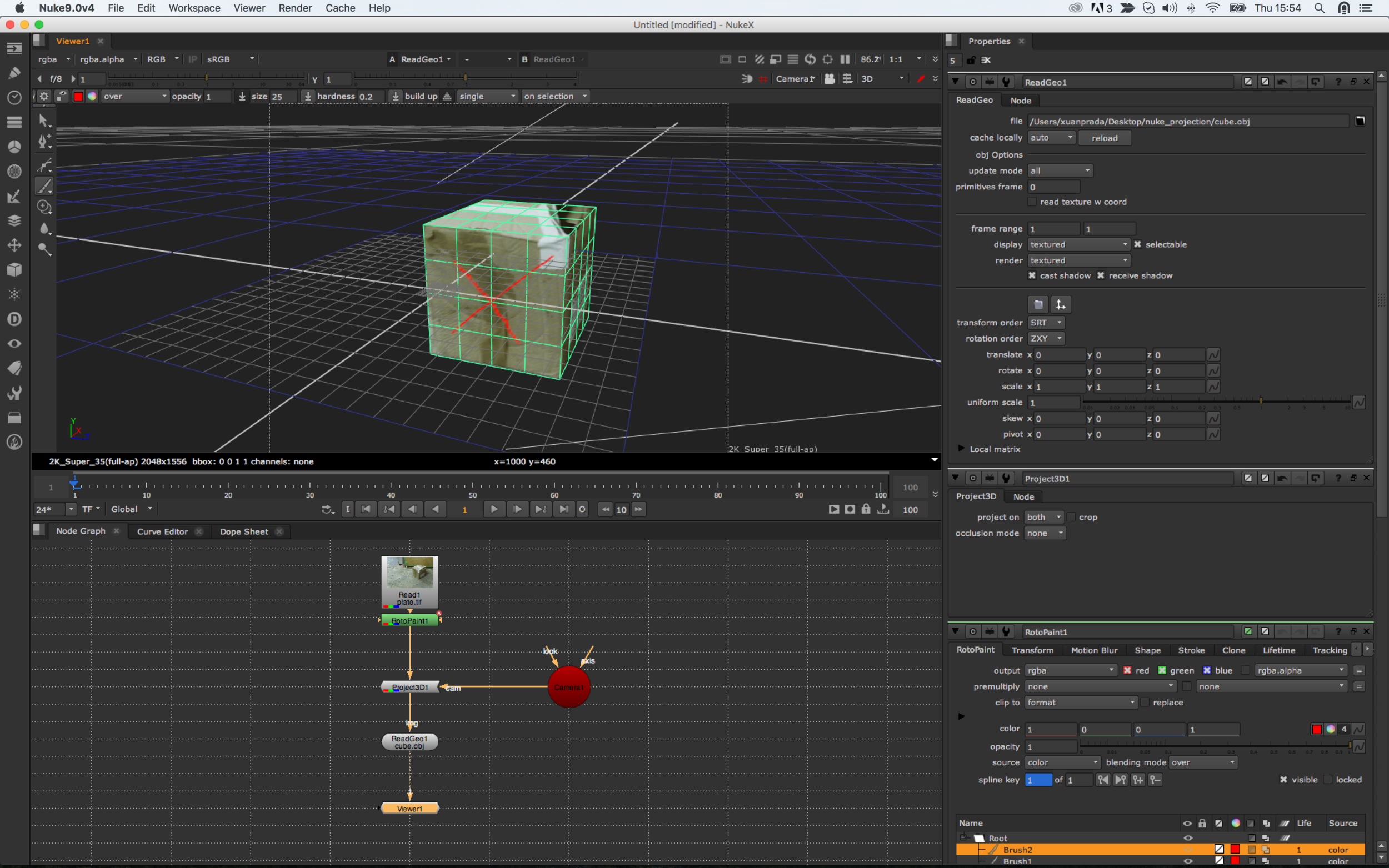

  • Look through the camera and you will see the image projected on to the geometry through the camera.
  • Paint or tweak whatever you need.
  • Use a UVProject node and connect the axis/cam input to the camera and the secondary input to the ReadGeo.
  • Projection option of the UVProjection should be set as off.

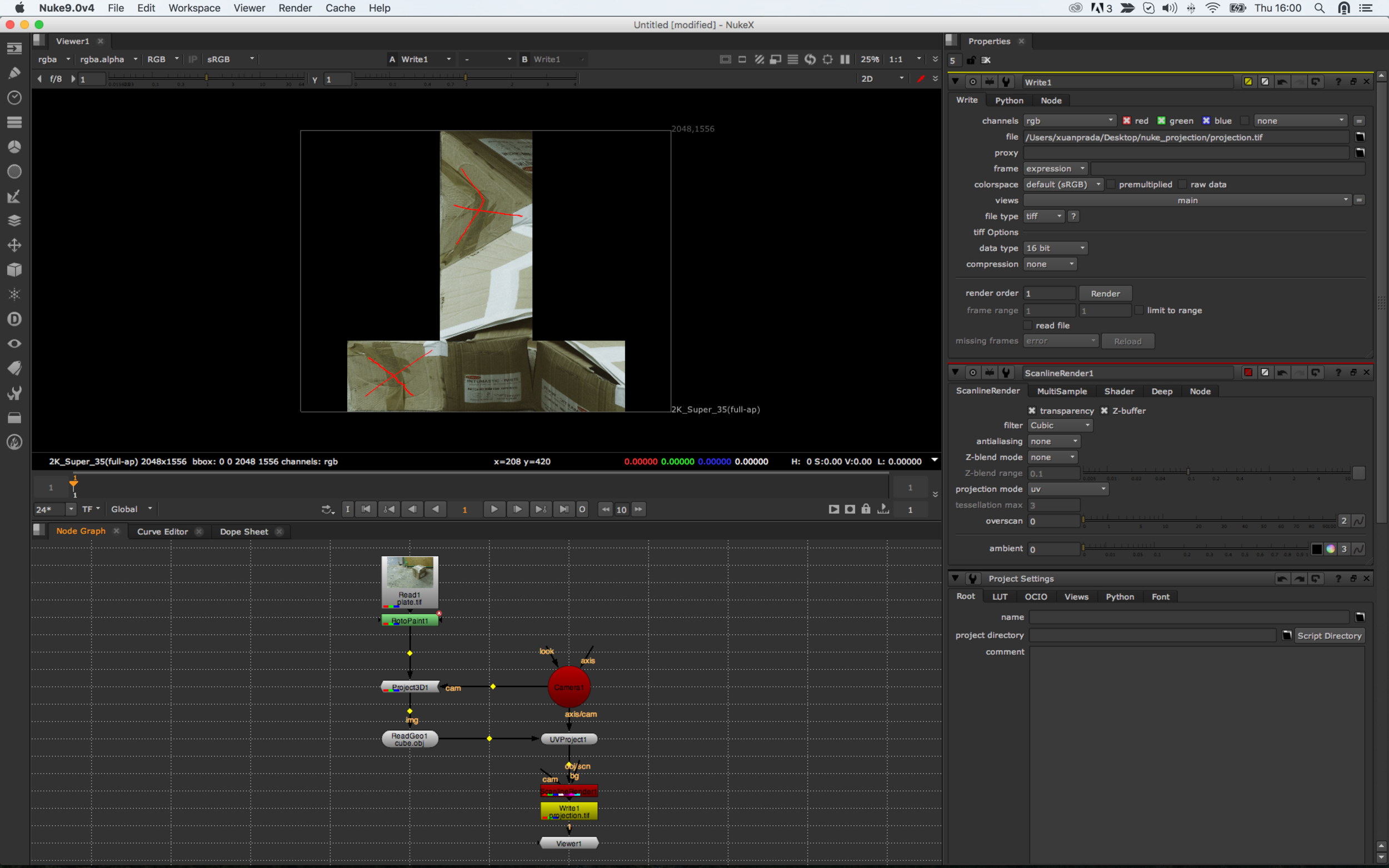

  • Use a ScanlineRender node and connect it’s obj/scene input to the UVProject.
  • Set the projection mode to UV.
  • If you swap from the 3D view to the 2D view you will see your paint work projected on to the geometry uvs.
  • Finally use a write node to output your DMP work.

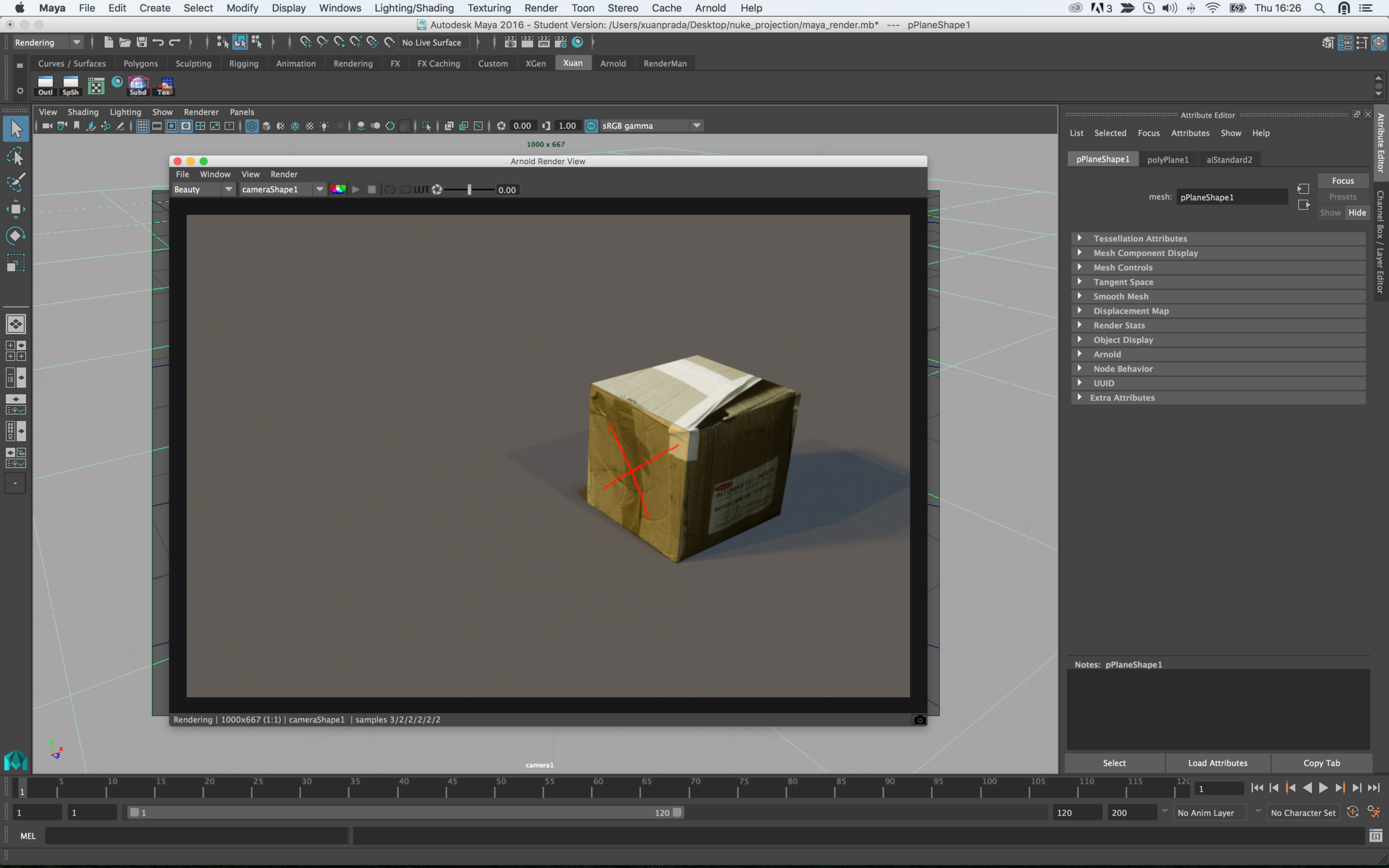

  • Render in Maya as expected.
